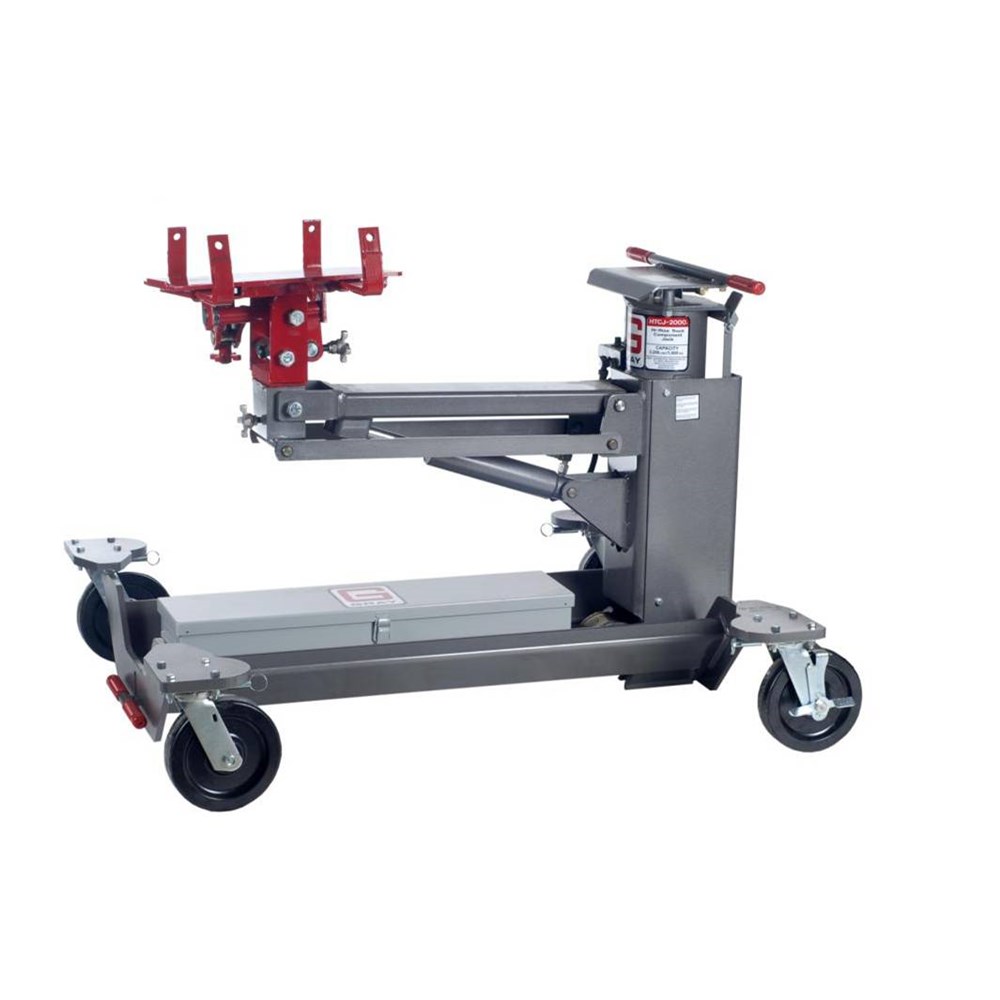

GRAYS Transmission Jacks are rated No.1 by Professional R&D Technicians! These Air-Operated Jacks have a 2 stage design and easy maneuverability.
- Rated No.1 by Professional R&D Technicians
- 2-stage design (1st stage: 100% air operated for speed & 2nd stage: hydraulic for precise control)
- Swivel casters make for easy maneuverability
- Nylon speed-strap quickly & conveniently secures the load
- Heavy-duty acme threaded screws provide a greater bearing surface for easier tilt adjustments
FEATURES
- Acme threaded head plate for easy adjustments
- 360 rotating head
- Fore and aft tilting head
- Quick ratcheting brackets for easy adjustments
- Retractable tow handle
- Made in the U.S.A.
SPECIFICATIONS
- Capacity: 2,700 lbs / 1,224.70 kg
- Minimum Start Height: 30 / 76.2 cm
- Maximum Lift Height: 72 / 182.88 cm
- Air Stage Stroke: 16 / 40.64 cm
- Air/Hydraulic Stroke: 26 / 66.04 cm
- Power: 1st Stage: Air / 2nd Stage: Air/Hydraulic
- Required Air Pressure: 110 PSI / 7.6 Bar
- Head Plate Dimensions: 11 1/2 x 17 / 29.21 cm x 43.18 cm
- Head Rotation: 360
- Tilt Forward: 10
- Tilt Rear: 10
- Tilt Side to Side: 10
- Overall Width: 42 / 106.68 cm
- Overall Height: 34 1/2 / 87.63 cm
- Overall Length: 49 5/16 / 125.25 cm
- Handle Length: 44 1/2 / 113.03 cm
- Caster Diameter: 8 / 20.32 cm
