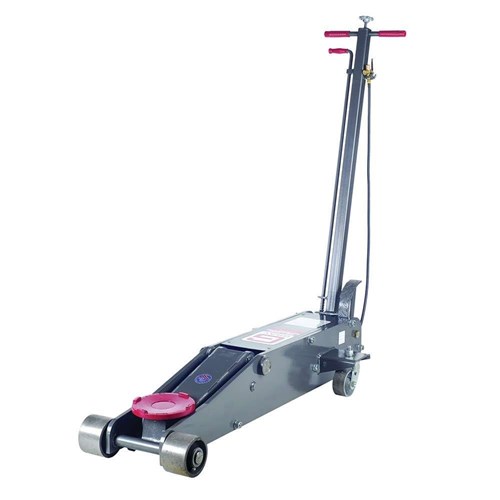

GRAY Heavy Duty Floor Service Jacks have a low start height combined with a high lift height enabling it to accommodate a variety of vehicles. It has a heavy duty steel frame.
- A low start height combined with a high lift height accommodates a variety of vehicles
- Heavy-duty steel frame design stands up to the most vigorous shop use
- Manual pump features included
- Large front wheels & long-life heavy-duty rear swivel casters allows ease of portability & durability
FEATURES
- Gray manufactures the entire heavy duty floor jack easy replaceable power unit
- Grease points for easy maintenance and longevity
- Manual or air operated
- Unique head plate design
- Multiple positioning handle
- Each unit is 100% factory tested
SPECIFICATIONS
- Maximum Capacity: 20,000 lbs / 9,071.85 kg
- Minimum Start Height: 7 / 17.78 cm
- Maximum Lift Height: 27 / 68.58 cm
- Power: Air/Hydraulic/Manual
- Required Air Pressure: 90-175 PSI / 6.2-12 Bar
- Chassis Height: 10 / 25.40 cm
- Chassis Length: 53 / 135.89 cm
- Handle Length: 47 / 119.38 cm
- Overall Width: 21 7/8 / 55.56 cm
- Overall Length: 101 / 258.45 cm
- Overall Reach: 93 / 43.50 cm
- Front Caster Diameter: 5 / 12.70 cm
- Rear Swivel Caster Diameter: 4 / 10.16 cm
- Saddle Diameter: 8 / 20.32 cm
- Front Width Caster to Caster: 17 1/8 / 43.50 cm
- Rear Width Bracket to Bracket: 20 1/8 / 51.12 cm
