Fuelbox Self Bunded Diesel Tanks

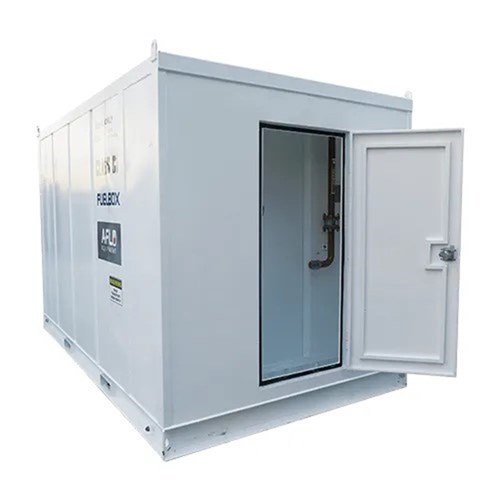

Fuelbox 15,000L SFL Self Bunded Diesel Tank with Enclosed Pump Bay

Product Code: AF-FB-ST15

Brand
A-FLO Equipment
Increase value Decrease value
Description

The FUELBOX Portable Fuel Storage Tanks are unique self-bunded Diesel storage tanks designed for transport and civil construction depots. These tanks are specifically designed with a small footprint in order to make them portable and easy for transportation. This also decreases the installation costs.

The FUELBOX Fuel Storage Tank is a very low-maintenance tank that saves you both time and money. These Fuel storage tanks come with a secure lockable Pump bay, making spillage negligible. You can customize your FUELBOX tank with Pumping equipment and tank gauging.

FEATURES

  • Self-bunded Diesel Static storage tank specifically designed with a small footprint with space being a premium in transport & civil construction depots.
  • Minimal installation costs and low maintenance save both your time & money
  • Secure lockable pump Bay
  • Flexible options with pumping equipment & tank gauging
  • Portable Fuel Tank with Pump

MODELS AND SPECIFICATIONS

  • AF-FB-ST5 5,000L
    2,950 (L) x 1,140 (W) x 2,550 (H)
    Max Capacity: 5,500L
    Tare Weight: 2,050
  • AF-FB-ST10 10,000L
    2,950 (L) x 2,200 (W) x 2,500 (H)
    Max Capacity: 10,500L
    Tare Weight: 3,090
  • AF-FB-ST13 13,000L
    3,950 (L) x 2,200 (W) x 2,500 (H)
    Max Capacity: 14,515L
    Tare Weight: 3,640
  • AF-FB-ST15 15,000L
    4,350 (L) x 2,200 (W) x 2,500 (H)
    Max Capacity: 16,500L
    Tare Weight: 3,980
  • AF-FB-ST20 20,000L
    5,513 (L) x 2,200 (W) x 2,500 (H)
    Max Capacity: 22,000L
    Tare Weight: 4,710
Technical Specifications
Brand A-FLO Equipment

Click the button below to download this page as a PDF:

Suggested Products

OCIO Level Indicator LV/RS Output - Diesel
OCIO Level Indicator LV/RS Output - Diesel AF-FP-75510D
(EA)
Increase value Decrease value
MC Box Fuel Management System including Software Kit, 10 User Keys and 1 Managers Key
MC Box Fuel Management System including Software Kit, 10 User Keys and 1 Managers Key AF-MCBOX1
(EA)
Increase value Decrease value


What is a self bunded fuel tank?

A self-bunded fuel tank (also known as a double-walled fuel tank) is a storage tank specifically designed to safely hold fuels, oils, or other hazardous liquids. The term "self-bunded" means it has a built-in secondary containment layer — essentially a tank within a tank.
Key Features:
    • Double wall structure: The inner tank holds the fuel, while the outer tank (bund) serves as a safety barrier to contain spills or leaks.
    • Environmental protection: If the inner tank fails, the outer shell prevents fuel from contaminating the surrounding area.
    • Compliance: These tanks often meet environmental and safety regulations for above-ground fuel storage.
    • Portability: Many self-bunded tanks are modular and can be transported to remote or temporary worksites.
    • Capacity: They come in a wide range of sizes — from a few hundred litres to tens of thousands of litres.
Common Uses:
    • Refuelling for construction or mining equipment
    • Fuel storage for farms or transport fleets
    • Diesel or petrol storage at remote locations
    • Emergency fuel reserves


Do fuel tanks need to be bunded?

Yes, fuel tanks often need to be bunded — especially in commercial, industrial, or environmentally sensitive settings — to comply with safety and environmental regulations.
When Is Bunding Required?
Legally Required If:
    • You’re storing large volumes of fuel (commonly >1,000 litres, but this varies by region)
    • The tank is located in areas where spills could harm the environment (near waterways, storm drains, or sensitive land)
    • Your local regulations (e.g., Australian Standards AS1940 or UK’s Environment Agency rules) mandate bunding
Common Situations That Require Bunds:
      • Fuel storage on construction and mining sites
      • Farms or transport depots storing diesel or petrol
      • Above-ground storage tanks at businesses
      • Anywhere fuel leakage could pose a fire, explosion, or pollution risk
