FLUIDLEV Automatic Tank Gauging

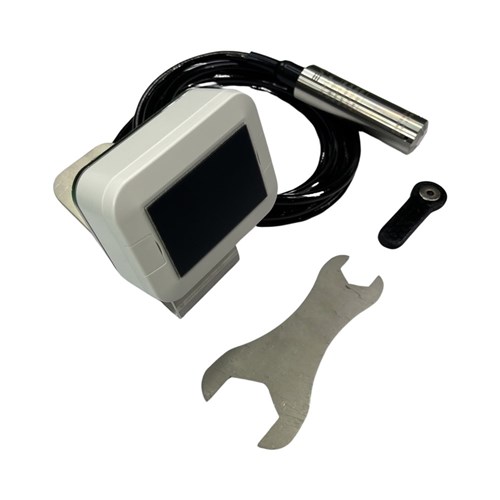

FluidLev Gateway Solar/Battery Powered ATG with 3m Probe. Gateway of up to 10 FluidLev LB Series Units

Product Code: AF-FL-826332

Brand
FLUIDLINK
Increase value Decrease value
Description

Product Options

  • FL-826332 FLUIDLEV Gateway Solar/Battery Powered ATG with 3m Probe
  • FL-826333 FLUIDLEV Gateway Solar/Battery Powered ATG with 6m Probe
  • FL-826334 FLUIDLEV Gateway Solar/Battery Powered ATG with 10m Probe
  • FL-826327 FLUIDLEV 240V Mains Power Cable
  • FL-GWSIM FLUIDLEV33 Gateway WITH Probe Yearly Sim Fee

*Note: FLUIDLEV Solar Powered Gateway ATG must be purchased with additional FL-GWSIM FLUIDLEV33 Gateway WITH Probe Yearly Sim Fee for access to online management software

Specifications

  • Mounting Options: Direct socket mounting or surface via screws
  • Enclosure Materials: ASA Extreme UV Resistance
  • Bracket Materials: Stainless Steel
  • Communication Options Cloud/ CAT-M1
  • Working Voltage: 3.7VDC nominal
  • Sensor Voltage: 3.3VDC
  • Sensor Lead Length: 3, 6 or 10 meters
  • Sensor Range: 0-3m
  • Gateway of up to 10 FLUIDLEV LoRa Series Units

Click to download Product Datasheet"

Features

FLUIDLEV Gateway Solar/Battery Powered ATG with 3m Probe

This gateway has options of 3m, 6m 10m probes. 0-3m depth with the 3, 6 & 10m probes. The FLUIDLEV gateway allows other LoRa sensors to communicate with the cloud software. This lowers cost for multiple sensor installations as there is only one cloud connection charge and a much smaller sensor charge. This makes multi-tank installation very cost-effective to monitor.

Requires FLUIDLEV 240V Mains Power Cable (FL-826327) and FLUIDLEV GSM33 Yearly Sim & Web Fee (FL-GWSIM)

Specifications:

  • Mounting Options: Direct socket mounting or surface via screws
  • Enclosure Materials: ASA Extreme UV Resistance
  • Bracket Materials: Stainless Steel
  • Communication Options Cloud/ CAT-M1
  • Working Voltage: 3.7VDC nominal
  • Sensor Voltage: 3.3VDC
  • Sensor Lead Length: 3, 6 or 10 meters
  • Sensor Range: 0-3m
  • Gateway of up to 10 FLUIDLEV LoRa Series Units
