Waste Oil Equipment Accessories

AFLO stocks a comprehensive range of genuine Graco products to support all your fluid handling and workshop needs.

Shop all Graco Products

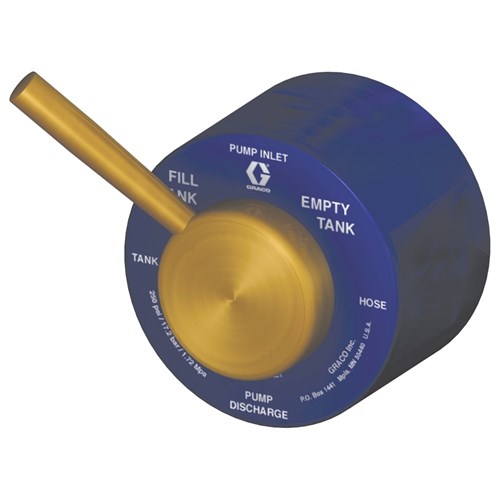

GRACO 1" NPT (f) 4-Way Evacuation Valve

Product Code: AF-G-120581

Increase value Decrease value
Description

GRACO 1 4 Way Evacuation Valve Scr NPT. The 4-way evacuation valve is a directional control valve used to simplify the filling and emptying of tanks.

  • Simplifies installation by eliminating need for multiple valves
  • Unrestricted flow - no pressure or volume loss
  • Two position tank fill and emptying control
  • Tapered, self-seating valve spool for superior sealing performance
  • Four (4) 5/16 inch threaded bolt holes for flush mount installation

Technical specifications
Maximum Working Pressure (bar): 14
Maximum Working Pressure (kPa): 1400
Maximum Working Pressure (psi): 200
Overall Height (cm): 12.065
Overall Height (in): 4.75
Overall Height (mm): 120.65
Overall Width (cm):12.065
Overall Width (in): 4.75
Overall Width (mm): 120.65
Thread Size (in): 1
Maximum Working Pressure (MPa): 1.4

Technical Specifications
Brand Graco

Click the button below to download this page as a PDF:

Suggested Products

RAASM 1" BSP (f) 4-Way Evacuation Valve
RAASM 1" BSP (f) 4-Way Evacuation Valve AF-RA-38131
(EA)
Increase value Decrease value



Graco Fluid Handling Solutions – Available at AFLO

Discover AFLO’s premium range of Graco fluid handling equipment, engineered for reliable performance across industrial, automotive, fleet servicing, and workshop environments. From oil and grease pumps to air-operated diaphragm pumps, fluid control meters, and lubrication systems, Graco products deliver exceptional efficiency, durability, and precision.

Graco equipment is ideal for demanding industries like mining, agriculture, and manufacturing. Shop confidently at AFLO, where you’ll find trusted Graco solutions backed by local support and expert advice.

Oil & Grease Pumps

Graco Fire-Ball Series (300 & 425)

    • Fire-Ball 425 (6:1, 10:1, or 75:1) – Designed for high-volume dispensing, these pumps feature a large air motor and corrosion-resistant components, ideal for fleet servicing and busy workshops.

    • Fire-Ball 300 (50:1) – A workshop favourite for consistent grease dispensing, offering long-term reliability with minimal maintenance requirements.

Graco LD Series Universal Oil Pump (3:1)

    • A cost-effective pump solution with thermal relief, built-in strainer, and a dirt-resistant pilot valve. Ideal for light-duty oil dispensing with great serviceability.

Diaphragm Pumps (Diesel & Fluid Transfer)

Graco Husky Air-Operated Diaphragm Pumps

    • Husky 716 (¾″ Aluminium) – Compact, leak-free, and low-pulsation, this model handles up to 61?L/min, perfect for oil, diesel, or antifreeze.

    • Husky 2150 (2″ Aluminium, Geolast) – High-flow (up to 568?L/min), energy-efficient, and easy to service. Built for large-scale fluid transfer applications.

    • Husky 15120 (Polypropylene / PVDF) – Designed for chemical handling, offering up to 120?GPM flow and up to 5× longer diaphragm life with stall-free operation.

Metering & Fluid Control Hardware

Graco Pulse Wireless Oil Gun (¾″ BSPT, High Flow)

    • A digital dispense gun with LCD display, PIN control, and high-flow output (68?L/min). Perfect for connected Pulse systems and multi-bay workshop use.

Graco EM8 Electronic Oil/Antifreeze Meter (½″ NPT)

    • A handheld metered gun with multi-unit LCD readout, twist-close nozzle, and IP69K rating—designed for accurate and robust performance in high-volume bays.

Graco Pulse Hub (FMS EU)

    • A centralised interface for managing Pulse systems—track dispense volumes, automate workflows, and improve fluid inventory visibility across your network.

Pulse Pro Extender / Repeater – Wall Mount (FMS AUS)

    • Extends Pulse coverage by 100+ metres. Ideal for large workshops or facilities with multiple service areas.

Hose Reels & Valves

Graco XD40 & XD50 Hose Reels

    • Available in various hose sizes (25 mm–38 mm), these reels are engineered with heavy-duty spools, ribbed frames, and full-flow swivel joints—ideal for diesel, oil, air, or water in harsh conditions.

Graco 4-Way Evacuation Valve (1″ NPT)

    • A self-sealing, flow-efficient valve that simplifies tank filling and emptying with minimal product loss. Quick to install and ideal for waste/recovery systems.

Why Choose Graco at AFLO?

  • Robust Engineering
    Built for longevity, with corrosion-resistant materials like stainless steel, nitrided surfaces, and anodised aluminium.
  • Scalable Systems
    Graco’s Pulse platform is designed for growth—supporting large dispense networks with automated tracking and integration.
  • Australian-Ready Support
    AFLO stocks parts locally and provides expert advice to ensure your Graco system runs smoothly under Australian conditions.
