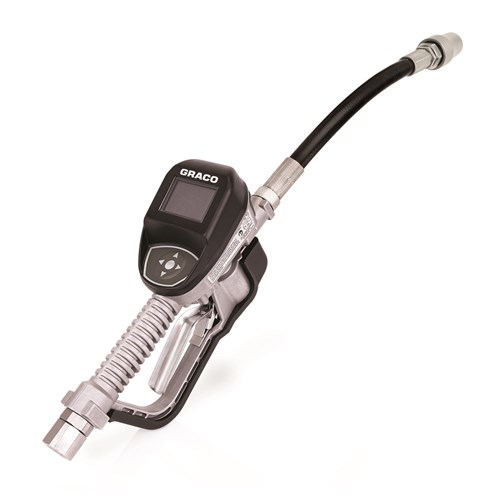

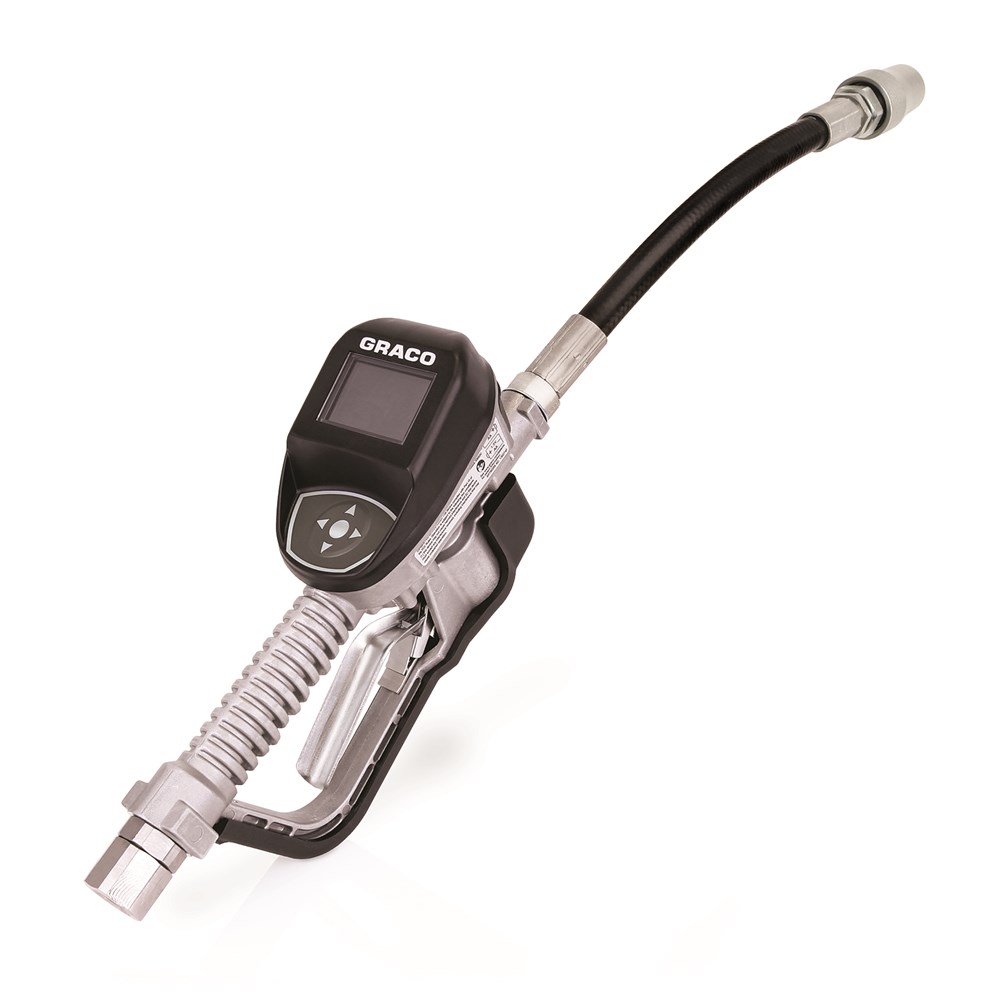

SDP18 Series Electronic Pre-set Oil/Antifreeze Meter Flexible Extension 3/4 in. Inlet
Graco s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
- Upgradeable SD Pre-set meters are compatible with PULSE FC fluid control system
- Large, Intuitive Display high-contrast display for low and bright light conditions
- Long valve life cartridge spool valve specifically designed to reduce wear and reduce costly down time
- Ergonomic four-finger trigger and easy-to-use button pad reduce worker fatigue
- Reliable time-tested Graco engineering
- Durable Thick cast aluminium body allows this meter to endure harsh, heavy-duty applications
- Long battery life uses 4 AA easy-to-replace batteries
Technical specifications
Dispense Type: Pre-set
Display Type: Electronic
Extension Type: Flexible
Fluid Inlet Thread Gender: Female
Fluid Outlet Thread Gender: Female
Includes: Nozzle, Flexible Extension
Inlet Size (cm / in) :1.91 / 3/4
Maximum Flow Rate (L/min): (18
Maximum Operating Temperature ( C / F) ): 70 / 158
Maximum Recorded Dispense: 9999
Maximum Storage Temperature ( C / F) ): 70 / 158
Maximum Working Pressure (psi / bar): 1500 / 103.4
Meter Accuracy (%): 0.5
Overall Height (cm / in): 14.6 / 5.75
Overall Length (cm / in): 33 / 13
Overall Width (cm / in): 9.5 / 3.75
Meter Technology: Oval Gear
Metering Gun Weight (lb / kg): 5.3 / 2.4
Minimum Flow Rate (GPM): 0.25
Minimum Flow Rate (L/min): 0.9
Trigger Protection Type: Guard
Trigger Lock: Locking
Minimum Operating Temperature ( C / F) ): -16 / 4
Valve Type: Metered
Product Type: Meter
Model: SDP18
Warranty 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
