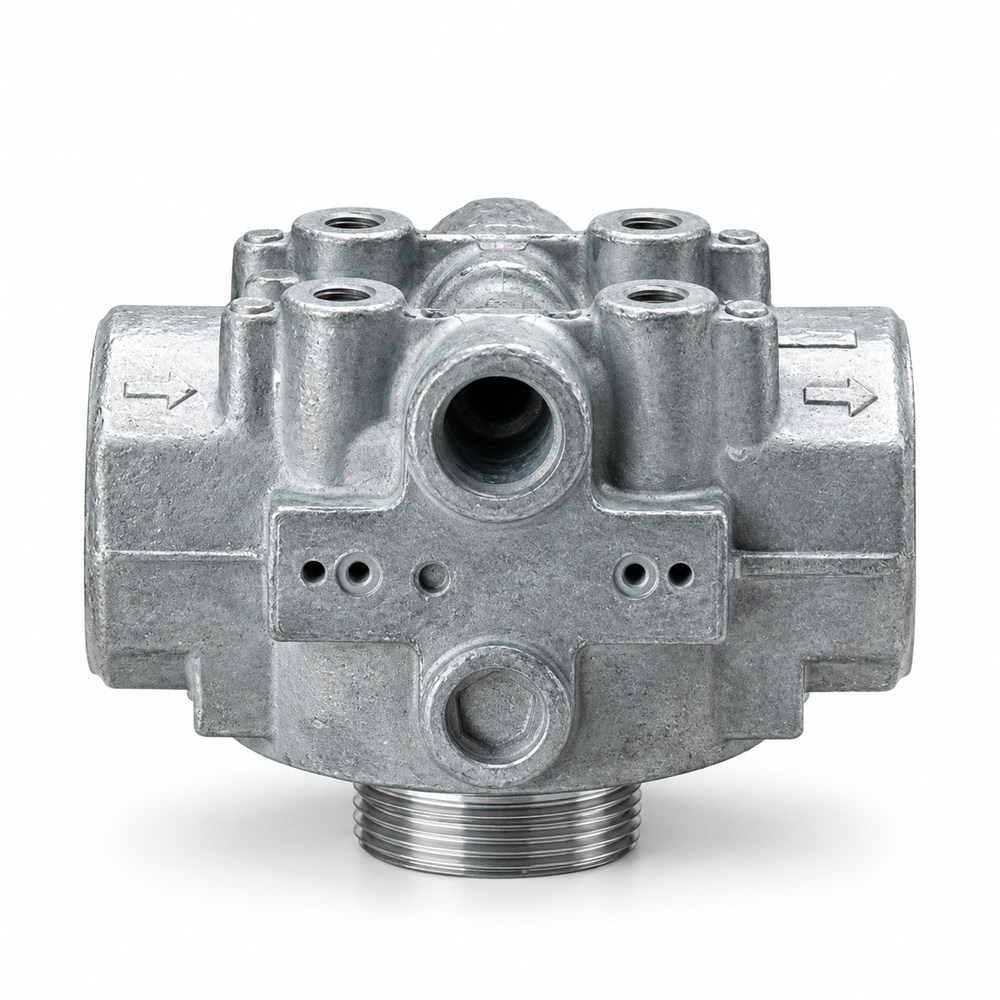

Clean Solutions filter heads can handle up to 246 lpm.

They feature robust, aluminum construction with steel inserts to minimize metal-to-metal galling between the head and the filter, even when used with diesel fuel. Viton seals are compatible with the widest range of fluids and maintain integrity in cold weather.

The head is leak-free, ensuring that fluids stay in and contaminants stay out. For maximum cleanliness, use Clean Solutions heads with Clean Solutions filters.

Connection: SAE-20 O-ring
Filter Quantity* 1
Max. Flow Range: 246 lpm
Fluid Compatibility: All diesel fuels and lubricants
Working Pressure: 350 psi / 24.1 bar
Rated Static Burst: 800 psi / 55.2 bar
Operating Temperature: -40 to 118 C
Construction: Aluminum head with threaded steel inserts and Viton seals

Features

Steel inserts safe for use with diesel fuel
Pre-ported for optional pressure gauges or
service indicators
Leak free SAE O-ring connection
Flow rates up to 246 lpm
